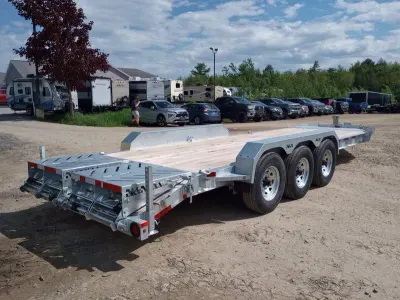

2024 N&N Trailers 7×20+3 Galvanized 22.5K Lowpro Equipment Trailer w/HD Full Width Ramps

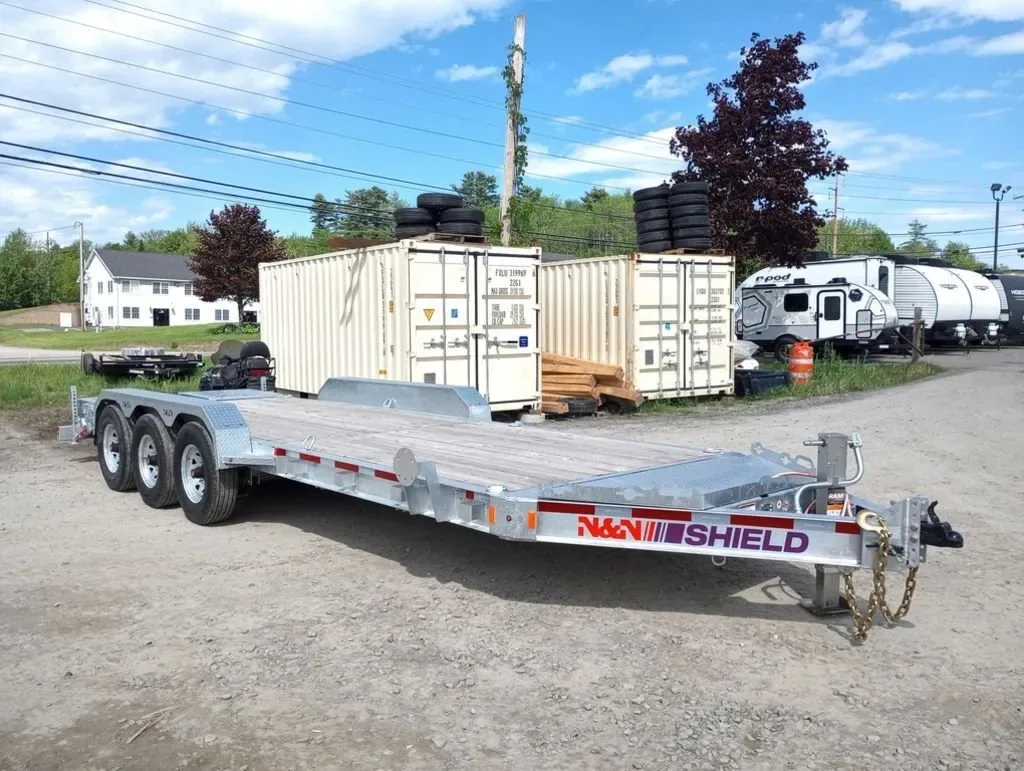

2024 N&N Trailers 7×20+3 Galvanized 22.5K Lowpro Equipment Trailer for Sale

This new 2024 N&N galvanized equipment trailer is a heavy-duty, corrosion-resistant workhorse built to move serious machinery day after day. With a twenty-two thousand five hundred pound rating and a generous payload, it is aimed squarely at contractors, farmers, and equipment owners who need to haul skid steers, compact excavators, tractors, and other rolling iron without worrying about outgrowing the trailer.

Engineered for Heavy Machines

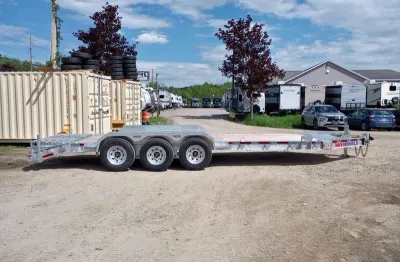

The low-profile deck sits closer to the ground, which flattens the loading angle so wide and low-slung equipment climbs aboard more safely. That advantage is amplified by the beavertail drop and the heavy full-width wedge ramps, which fold flat and span the entire deck to accept tracked machines and wide axles. Spring assistance takes much of the muscle out of raising and lowering those ramps, a small feature that saves your back on a busy jobsite. Underneath, a stout H-beam frame rides on three drop axles with slipper spring suspension and fourteen-ply tires, giving the trailer the backbone and stability to carry heavy loads at highway speed.

Why Galvanizing Matters

A fully galvanized trailer resists rust in a way that painted steel never will, which is a genuine long-term advantage for equipment that lives outdoors and works in mud, salt, and standing water. The finish protects the frame from the inside out, meaning fewer repairs and stronger resale value down the road. Sealed cold-weather wiring and flush LED lighting round out a package designed to keep working through winter conditions that leave lesser trailers dark and corroded.

Specifications

• Fully galvanized, new condition
• GVWR 22,500 lbs; empty weight 4,700 lbs; payload 17,800 lbs

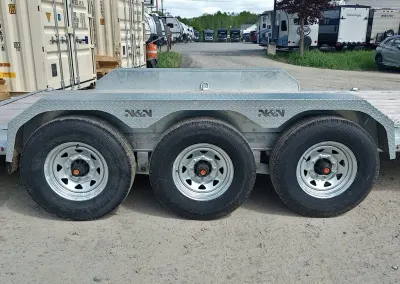

• (3) 7,500 lb drop axles with slipper spring suspension
• 8″ H-beam frame, crossmembers at 16″ centre to centre
• 20 ft + 3 ft deck, 36″ beavertail drop, 23″ deck height

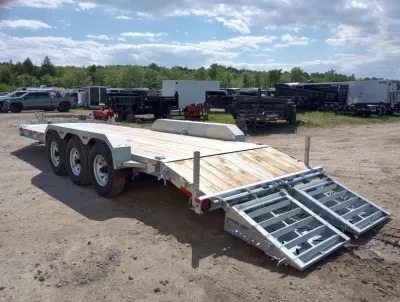

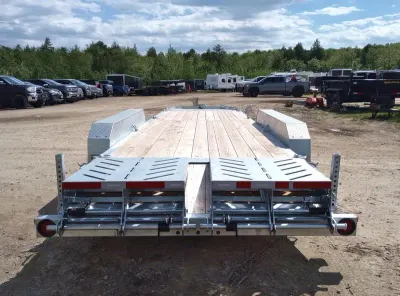

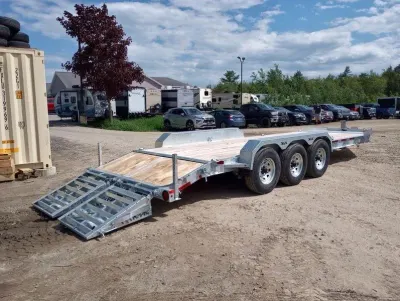

• HD full-width fold-flat spring-assisted wedge ramps

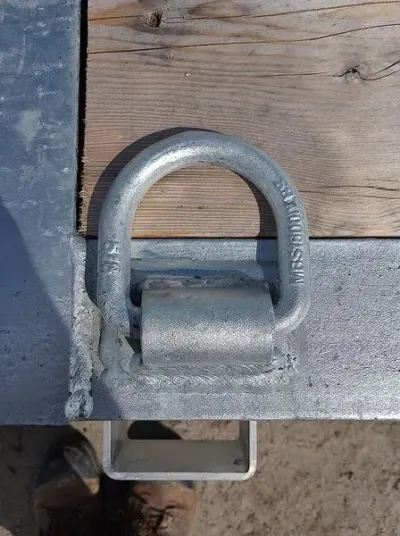

• 2″x8″ spruce plank decking, 8 welded D-rings
• Demco 21,000 lb ball coupler, 12,000 lb drop-leg jack
• HD 235/75R17.5 14-ply tires

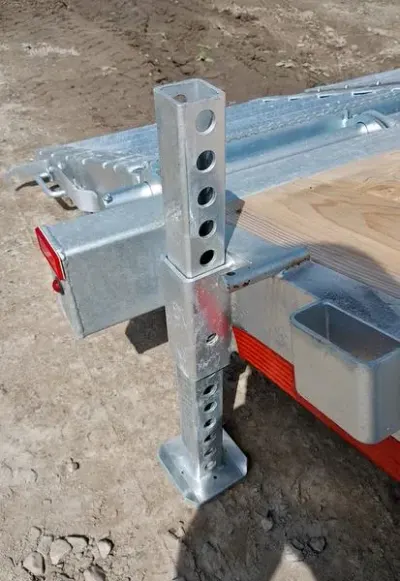

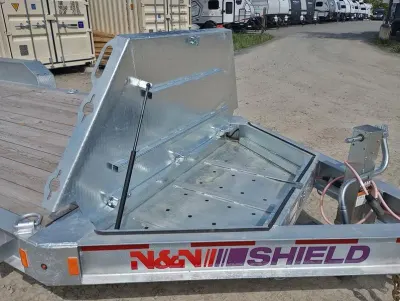

• Rear stabilizer legs, toolbox on pole, spare tire mount
• Sealed Voltflex cold-weather wiring harness and LED lights

When choosing a heavy equipment trailer, verify that your machine’s operating weight sits comfortably beneath the payload and confirm your truck and hitch are rated for a load of this class. Because this N&N is brand new and galvanized, corrosion resistance is excellent from day one; simply check tire pressures, ramp operation, and wiring before your first haul.

Inspection is welcome at our yard, and we deliver Canada-wide from Winnipeg, Manitoba. Contact Pauls Containers Ltd to request a quote and arrange transport.
