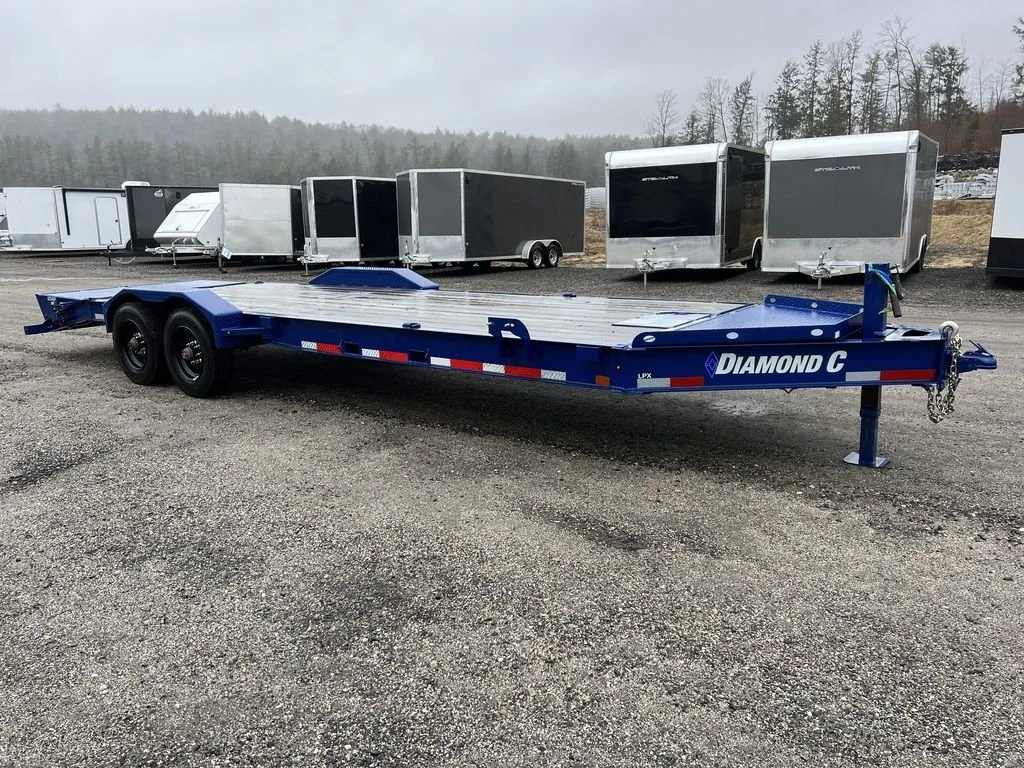

2022 Diamond C 7×24 20K Low Profile Equipment Trailer w/Max Ramps

2022 Diamond C 7×24 20K Low Profile Equipment Trailer for Sale

This pre-owned 2022 Diamond C 7×24 low profile equipment trailer pairs a 20,000 lb. GVWR with an impressive 15,620 lb. payload, making it a favorite for hauling skid steers, tractors, and compact machinery. The low-profile engineered beam frame drops the deck height for an easier, safer loading angle, and this metallic blue equipment trailer arrives loaded with Max Ramps, a winch plate, and heavy-duty tie-downs.

Low Profile, Easy Loading

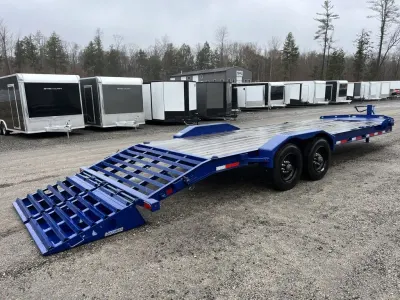

Diamond C’s engineered beam frame with a tongue integral to the frame keeps the deck lower to the ground, which shortens the ramp angle and takes the stress out of loading low-clearance equipment. The 36” self-cleaning dovetail with Max Ramps drops debris as you drive, so mud and gravel do not build up on the ramps between jobs.

Ready to Work

A winch mounting plate lets you power-load disabled or non-running equipment, while the HD V-tongue storage box with lid and fork holder keeps your chains, binders, and forks organized and secure. Six stake pockets and four 5/8” D-rings give you plenty of anchor points to tie down any load properly.

Specifications

• Year: 2022 | Make: Diamond C | Model: LPX210L24X82 | Colour: Metallic Blue | Condition: Pre-Owned

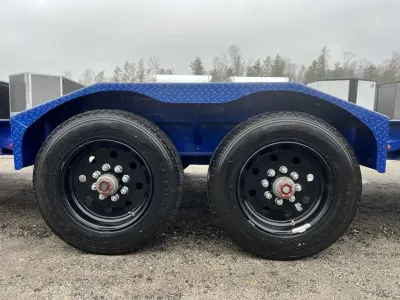

• Two 10K torsion straight axles with 10K electric drum brakes
• 3” I-beam on 12” centres with engineered beam frame
• 3/16” diamond plate fenders and treated decking

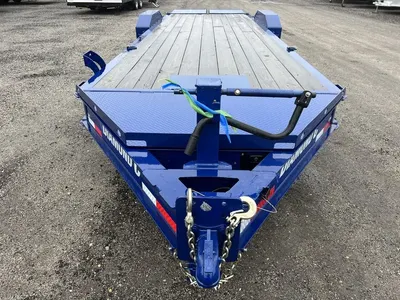

• 20K flat-mount coupler with tongue integral to the frame

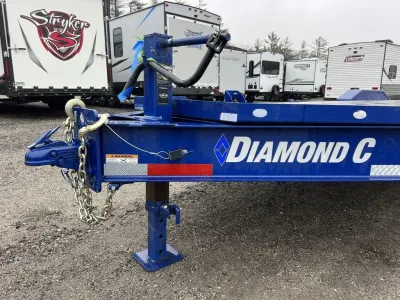

• 12K drop-leg jack and spare tire mount

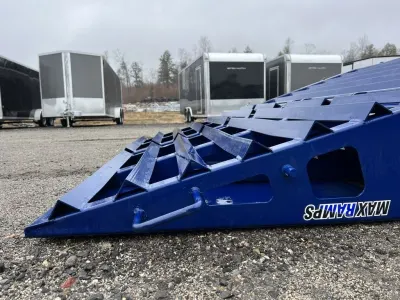

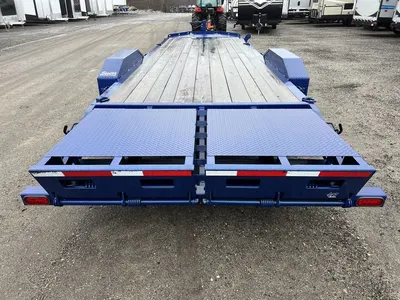

• 36” self-cleaning dovetail with Max Ramps
• Six standard stake pockets and four 5/8” D-rings

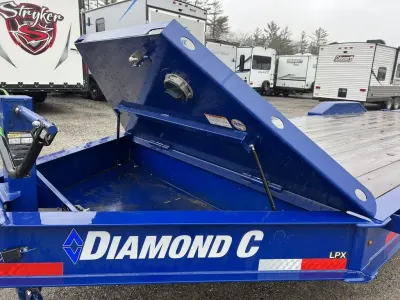

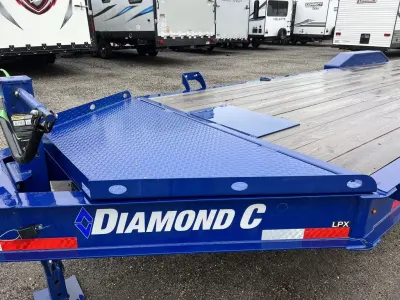

• HD V-tongue storage box with lid, fork holder, and winch mounting plate
• Steel black wheels with all-LED lighting
• GVWR: 20,000 lbs. | EVW: 4,380 lbs. | Payload: 15,620 lbs.

When buying a used equipment trailer, confirm the payload covers your loaded machine, check the torsion axles, brakes, and ramp condition, and be sure your tow vehicle and hitch are rated for a 20K bumper-pull. The low-profile deck is especially helpful for loading forklifts and low-slung attachments.

See this Diamond C in person or let us deliver Canada-wide from Winnipeg, Manitoba. Request a quote today and get this low profile equipment trailer working for you.
