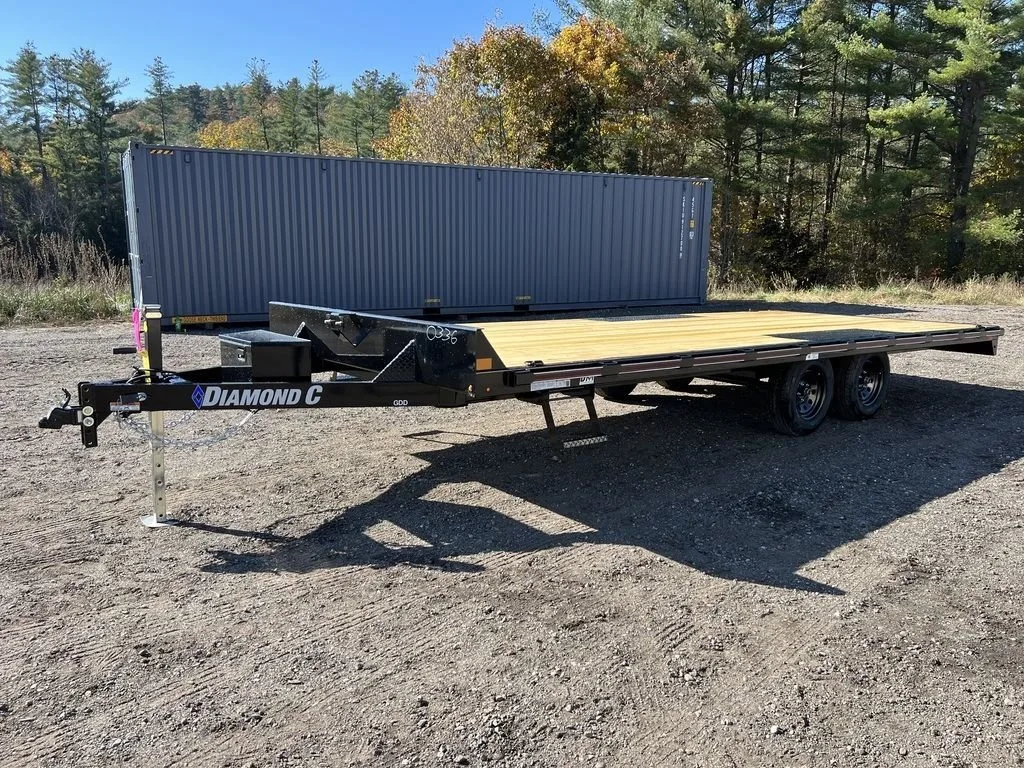

2024 Diamond C 8.5×20 7K Deckover Trailer w/Slide-In Ramps

2024 Diamond C 8.5×20 7K Deckover Trailer for Sale

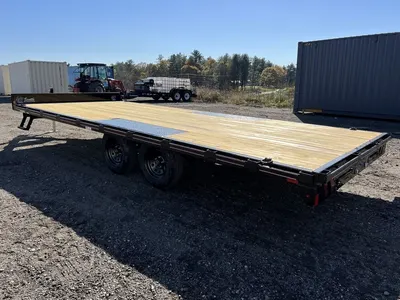

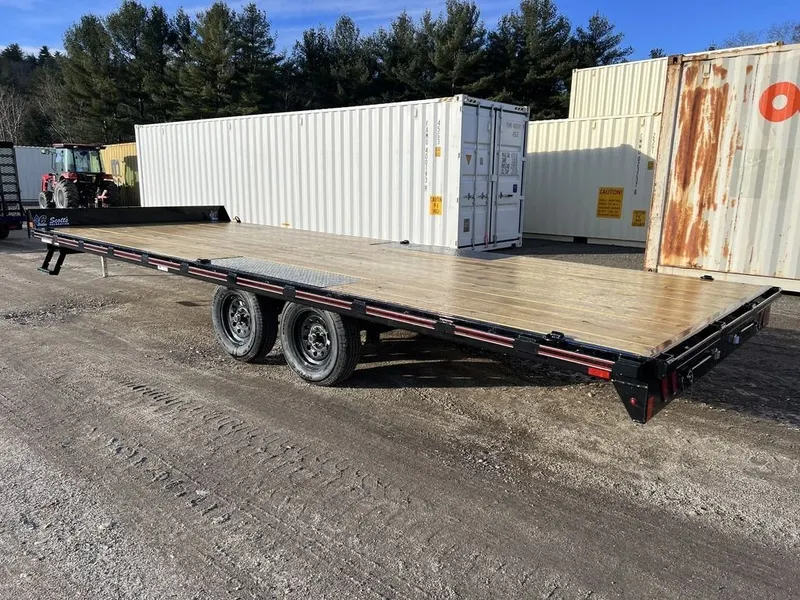

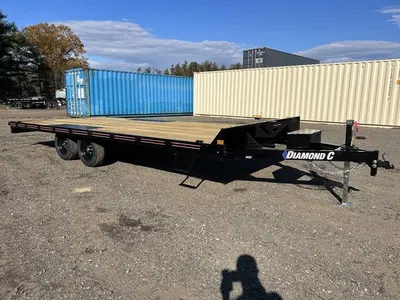

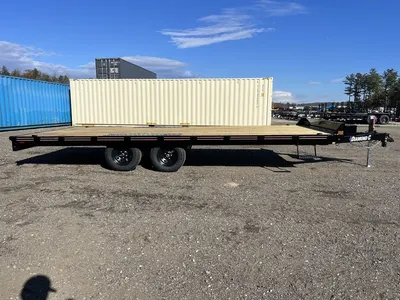

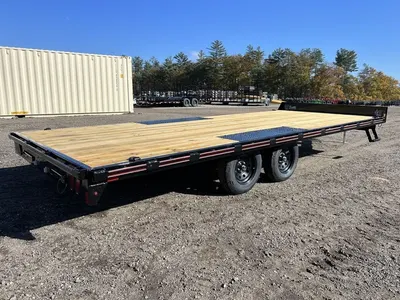

This new 2024 Diamond C 8.5×20 deckover trailer (model GDD23520x102) delivers a full-width, flush loading surface at a size that fits most half-ton and larger tow rigs. With the deck riding over the wheels, the 7K deckover equipment trailer gives you an unobstructed 8.5-foot-wide platform across a 20-foot length — ideal for hauling mowers, ATVs, building materials, and small machinery for contractors, farms, and DIY property owners.

Load Wide, Tie Down Anywhere

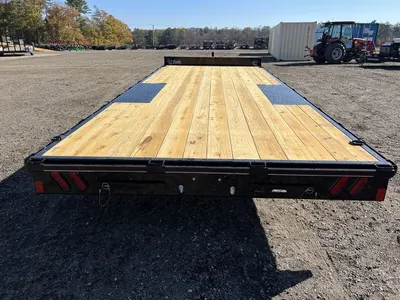

The deckover layout means no wheel wells eating into your usable width, so wide pallets and equipment load flat and centered. Rear slide-in ramps tuck away neatly for transit, and the lace rail plus 1/2″ D-rings and stake pockets give you flexible securement whether you’re strapping a machine or bundling long stock.

Specifications

• Year: 2024, Make: Diamond C, Model GDD23520x102, Black, New condition

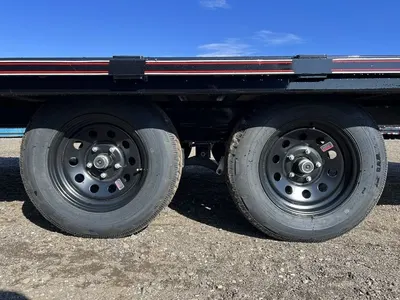

• Two 3.5K Super Lube electric brake axles with 4-leaf spring suspension

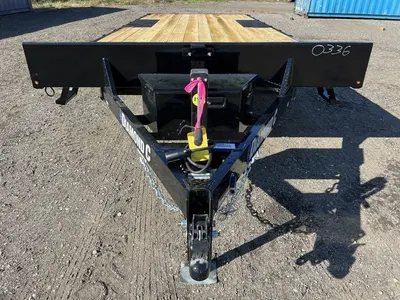

• 2″ – 10,000 lb Demco EZ-Latch adjustable channel coupler
• 5″ channel frame and 5″ channel tongue with integral frame
• 3″ I-beam crossmembers on 24″ centres

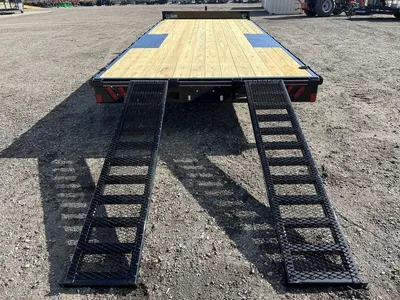

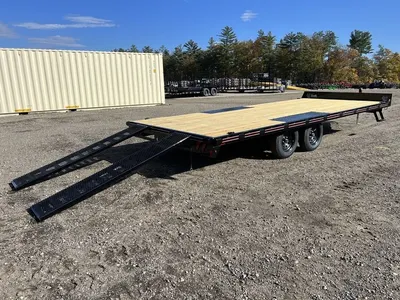

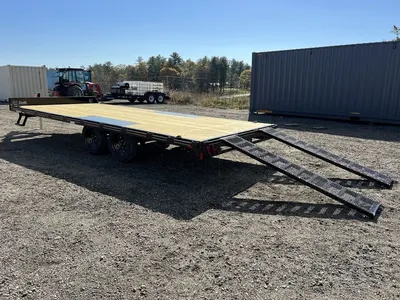

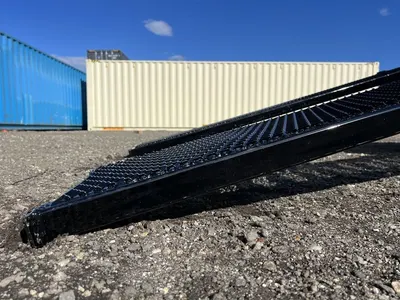

• 84″ rear slide-in ramps, 5″ x 2″ lace rail
• 7,000 lb drop-leg jack, 2″ x 1/4″ rub rail with stake pockets and pipe spools
• 2″ treated decking, ST205/75R15 radial tires, all LED lights

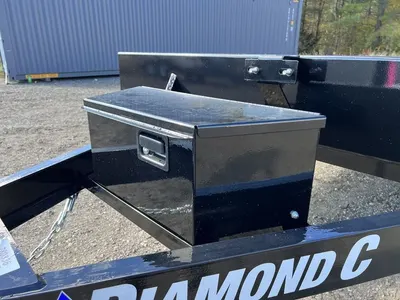

• Added options: lockable tongue storage box, spare mount, 1/2″ D-rings, retractable step
• GVWR: 7,000 lbs — EVW: 2,850 lbs — Payload: 4,150 lbs

A 7,000 lb GVWR trailer like this offers roughly 4,150 lbs of payload once you subtract its own weight — plenty for compact tractors, UTVs, and material loads. Before towing, verify your hitch accepts the 2″ adjustable coupler and that your vehicle’s rating clears the loaded weight. The lockable tongue box is a handy spot for straps and tools.

You’re welcome to inspect this deckover trailer before you buy, and we ship Canada-wide from Winnipeg, Manitoba. Reach out to Pauls Containers Ltd for a quote and delivery timeline today.
